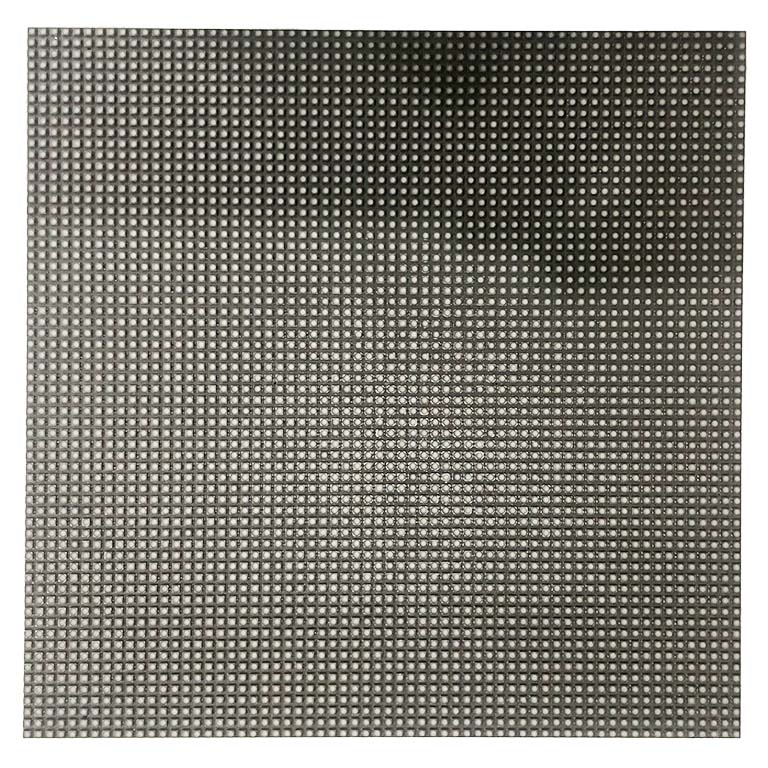

Module P3 Indoor Lemass

Parameter Item

MSG3

Module composition

Pixel configuration

SMD 3 in 1

Pixel pitch(mm)

3

Module Resolution(WxH)

64x64

Module Size(WxH)

192*192

Module Weight(Kg)

0.275±0.05

Module Area(m2)

0.03686

Pixel Density(Dot/m2)

111,111

Brightness(nits)

≥ 600

Color Temperature(K)

3000-15000 Adjustable

Horizontal Viewing Angle(°)

160

Vertical Viewing Aangle(°)

140

Deviation of LED Luminance

<3%

Brightness Uniformity

≥97%

Contrast Ratio

5000:1

Electrical Parameters

Max Power Consumption(W/m2)

≤ 390

Average Power Consnumption(W/m2)

≤ 130

Power Supply(V)

DC:4.5

Module Current(A)

3

Processing performance

Driving mode

Constant Current 32S

Frame Rate(Hz)

50&60

Refresh Rate(Hz)

3840&1920 Optional

Using Parameters

Life Typical Value(hrs)

100,000

Operating Temperature(°C)

-10--40

Storage Temperature(°C)

-20--60

Operating Humidity(RH)

10—80% No condensation

Storage Humidity(RH)

10—85% No condensation
