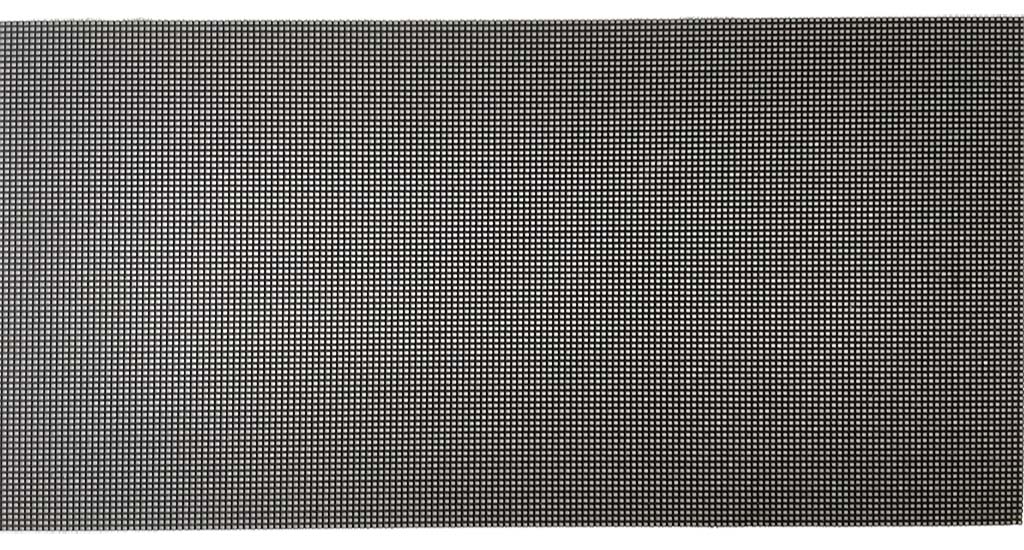

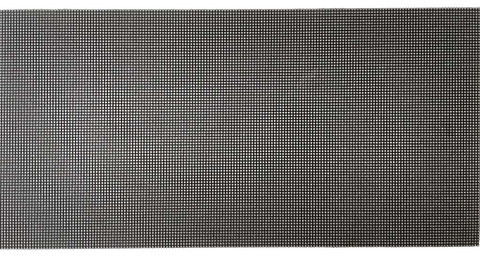

module P1.86 indoor lemass

Parameter Item

MSG1.8

Module composition

Pixel configuration

SMD 3 in 1

Pixel pitch(mm)

1.86

Module Resolution(WxH)

172x86

Module Size(WxH)

320x160

Module Weight(Kg)

0.47±0.05

Module Area(m2)

0.0512

Pixel Density(Dot/m2)

288.906

Brightness(nits)

≥ 600

Color Temperature(K)

3000-15000 Adjustable

Horizontal Viewing Angle(°)

160

Vertical Viewing Aangle(°)

140

Deviation of LED Luminance

<3%

Brightness Uniformity

≥97%

Contrast Ratio

5000:1

Electrical Parameters

Max Power Consumption(W/m2)

≤ 370

Average Power Consnumption(W/m2)

≤ 125

Power Supply(V)

DC:4.5

Module Current(A)

4

Processing performance

Driving mode

Constant Current 43s

Frame Rate(Hz)

50&60

Refresh Rate(Hz)

≥3840

Using Parameters

Life Typical Value(hrs)

100,000

Operating Temperature(°C)

-10-40

Storage Temperature(°C)

-20-60

Operating Humidity(RH)

10—80% No condensation

Storage Humidity(RH)

10—85% No condensation
